Aluminum vs Steel Compressed Air Piping

Carbon steel rusts from the inside out in compressed air service. Aluminum alloy doesn't. That's the core of the material selection question and most of the rest is just details.

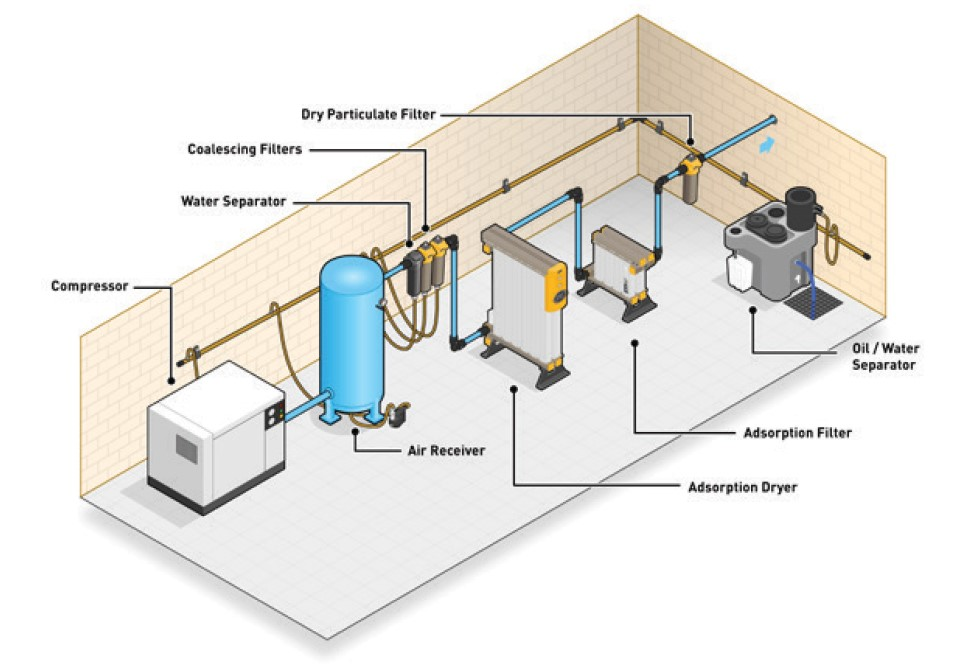

Compressors ingest ambient air, moisture and all. Compression heats the air so the water stays vapor, then it cools in the receiver and piping and condensate drops out. Refrigerated dryers handle the bulk of the moisture. ISO 8573-1 Class 4 is a 3°C pressure dewpoint and that's what a properly maintained refrigerated dryer delivers.

Past the dryer, things get less controlled. Branch lines that sit idle most of the day. Low spots in headers where drain legs were supposed to go but didn't because the installing contractor was behind schedule and decided every fifty meters was close enough. Water pools in those spots and stays there for weeks.

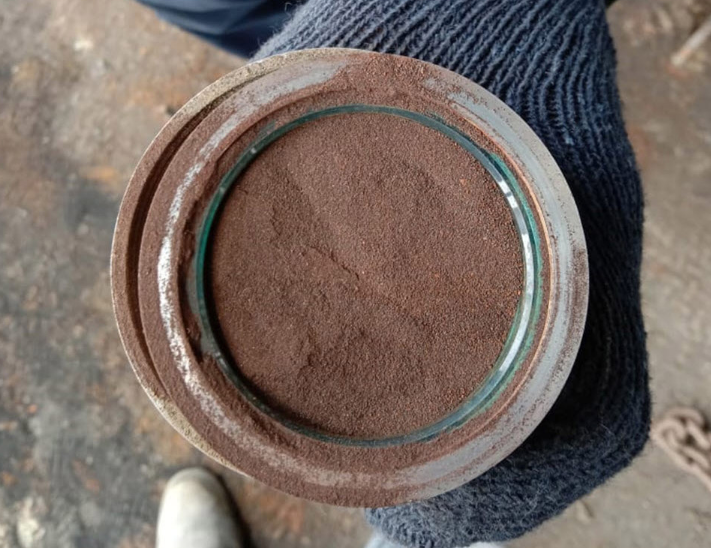

The rust that forms inside a carbon steel compressed air pipe is not like the patina on outdoor structural steel. A bridge beam gets rained on and then dries in the sun and wind. The inside of a compressed air pipe stays wet. The iron oxide that forms under these conditions is porous, soft, layered, and bonds poorly to the base metal. Moisture seeps through it and keeps attacking the steel underneath. There's no equilibrium point where the corrosion stabilizes. It keeps going, year after year, eating deeper into the wall.

Kaeser publishes cross-section photos in their air treatment documentation. After six or seven years in service the pipe bore is covered in nodular rust buildup, pitting in some areas has gone a third of the way through the wall, and the effective inside diameter has been reduced by the accumulated crud. These photos get passed around at trade shows and people always assume they're extreme cases selected for dramatic effect. They are not. This is representative of what happens to carbon steel compressed air pipe in any climate with moderate humidity, given average maintenance practices and average system design.

There was, and this has been referenced on the Practical Machinist forums though the original post may have been taken down, an auto parts stamping plant in Ohio that dealt with repeated pneumatic equipment failures across a production cell for something like six months. Maintenance replaced everything. Valves, cylinders, filters, regulators, the whole FRL assembly, multiple times. The failures kept coming back. Eventually somebody sectioned a piece of the 3-inch header feeding that area and the bore was mostly rust. Replaced forty-odd meters of pipe and the problems went away immediately.

That story isn't unusual. Compressor service techs have their own versions of it. The failure pattern is so common it should be the first thing checked, and it's almost always the last.

Aluminum alloy forms aluminum oxide on its surface. Al₂O₃. Hard, dense, tightly bonded, a few microns thick, self-healing if scratched. Forms immediately on exposure and then the reaction stops. Period. Pipe that's been in service twenty years, cut it open, inside is clean and smooth. No buildup, no pitting, no roughening, no particulate shedding downstream, no mysterious valve failures, no filter elements loading up ahead of schedule.

The exterior surface is similar. Carbon steel in exposed locations needs primer and topcoat and touchup painting every few years. Aluminum needs an identification label per ANSI A13.1 and that's it, you're done with it, forever.

Crane TP 410 lists roughness for new commercial steel pipe at about 0.046mm. Aluminum drawn tube about 0.002mm. Run Darcy-Weisbach for both on a new system and aluminum has lower friction loss. The difference on a new system is moderate.

Time makes it a different story. Rust accumulates on the steel pipe inner wall. Effective roughness climbs to 0.1mm, 0.15mm, worse in bad sections. The friction factor in the Darcy-Weisbach equation has a logarithmic relationship with roughness, so these increases produce disproportionately large increases in pressure drop. A header run that was designed for 0.3 bar loss might be running at 0.5 bar or higher after several years of corrosion

What happens in practice is the compressor setpoint gets bumped up to compensate for the lost pressure at end-of-line equipment. Half a bar here, half a bar there over the years. CAGI says each 1 bar of additional discharge pressure costs about 7% more input energy. On a 75kW rotary screw running heavy hours, the extra electricity from a 1 bar setpoint increase is thousands of dollars a year. And it keeps growing because the pipe keeps corroding and the setpoint keeps creeping up and nobody connects the rising electricity bill to the pipe condition because the changes are gradual and the electricity bill has too many other things moving around in it.

Aluminum pipe roughness stays flat. The pressure drop calculation done during engineering is still accurate years later.

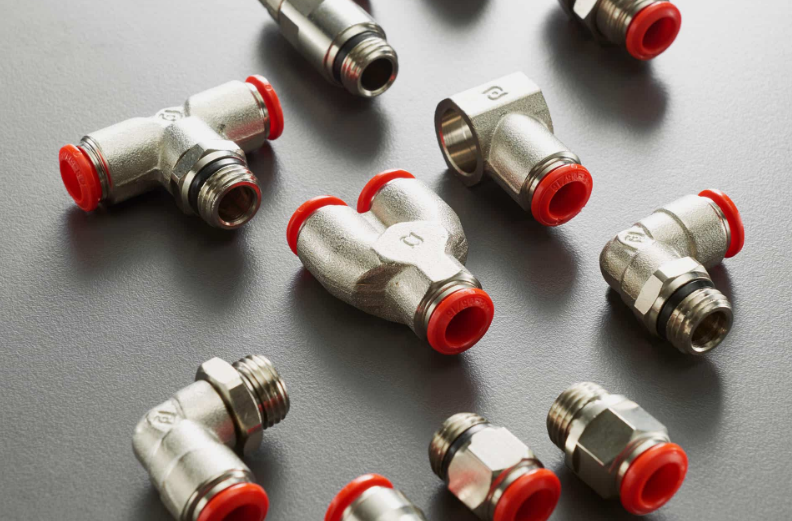

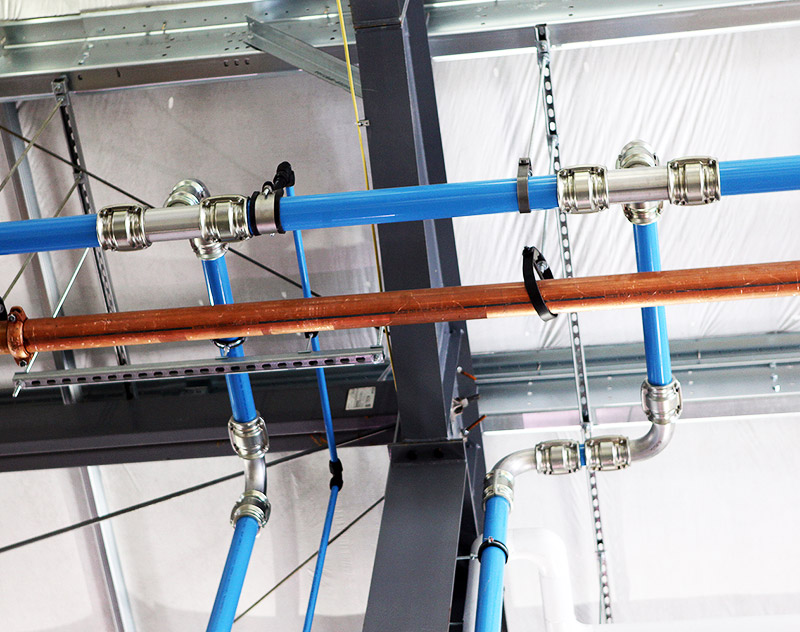

This is where the Transair product line and similar aluminum piping systems from AIRnet, Infinity, Prevost and others made their reputation. Transair especially, since they were one of the first to market with a full push-to-connect aluminum compressed air piping system, and their fittings have become the reference point that the others are compared against. Whether the competitors are better or worse depends on who you ask and how much of their opinion is shaped by distributor relationships, but the installation concept is the same across all of them: cut pipe, deburr, push into fitting, tighten collar, O-ring makes the seal. Ten minutes per connection, no welding, no hot work permit, no fire watch, no welder certifications, no gas bottles or welding machines.

Compare that to welded carbon steel. ASME Section IX qualified welder. Written WPS. Hot work permit that depending on the plant can take half a day to get approved and requires three signatures and a posted fire watch for an hour after welding stops. Gas bottles and welding machine and extension cords and grinding equipment for post-weld cleanup. Maybe radiographic inspection of welds if the facility requires it. Threading as an option on 2-inch and smaller with Schedule 80 pipe and a threading machine, which is fine for a few joints and tedious for a whole system. Flanged joints on larger pipe involving rigging and gaskets and torque patterns.

All of this eats time and money at a rate that surprises people who haven't priced out a welded pipe installation recently. Coded welders in industrial construction charge accordingly. And their availability is often the bottleneck on the project schedule. The aluminum piping install can be done by maintenance technicians already on the payroll, working from the manufacturer's installation guide, with tools they already own.

Weight is the other piece of the installation picture that people underestimate until they've spent a day hefting pipe onto overhead hangers. DN100 Schedule 40 carbon steel, six meter length, about 50 kilos. Same size in aluminum alloy, roughly 17 kilos. One person versus two. Less fatigue, faster work, fewer hangers because lighter pipe spans further between supports. Fewer holes drilled overhead, fewer anchors, less time on scaffolding.

Project labor hours on aluminum piping systems typically run about half of welded steel for comparable scope. Contractors who've bid and executed both track this data in their project records.

Modifying a welded steel system is a production-stopping event. Isolate the section. Depressurize. Lock out tag out. Hot work permit with all the associated paperwork and scheduling. Get a welder on site, which might mean waiting two or three days if the in-house guy is busy or if you're calling a contractor. Do the work. Pressure test. Leak check. Return to service. A single tee addition with two meters of branch pipe can eat a week and a half of calendar time.

Aluminum fittings come apart and go back together. Same day. Some facilities report getting modifications done during a lunch break. The cumulative impact of this difference, at a facility that modifies piping several times per year, is enormous. After a couple years of frequent changes the accumulated production downtime and welder scheduling costs from a steel system can exceed the original piping material cost. Maintenance managers at shops that do a lot of reconfiguration know this from having lived through it.

Material cost: aluminum alloy pipe runs 50% to 100% more per meter than carbon steel, depending on diameter and supplier.

Installed cost: different number, and on larger projects often a much closer number. Welded steel installation is expensive. Welder labor rates, welding consumables, gas, grinding supplies, hot work permit administration, extended project timelines with other trades billing standby time while they wait for welding and testing to clear. Aluminum installation is a maintenance technician's hourly rate and pipe cutter blade wear. Small jobs, steel is cheaper all-in. As project size grows, the labor savings on the aluminum side eat into the material price gap. Large projects, the totals converge. Sometimes cross.

Operating cost over the life of the system is where procurement departments lose the argument, if anyone bothers to present the data to them. Steel compressed air pipe accumulates ongoing costs spread across budget categories where they're individually small enough to go unnoticed: exterior repainting, wall thickness surveys per ASTM E797, slowly rising electricity bills from increasing pressure drop, equipment repairs from rust contamination charged to machine maintenance rather than piping, spot replacement of corroded pipe sections. Aluminum in service has one maintenance item worth mentioning. O-ring replacement in fittings after maybe ten-plus years. The lifecycle cost comparison is heavily lopsided.

Galvanized steel was standard for compressed air for decades. It should not be specified for new installations and anyone who tells you otherwise is working from an outdated playbook. The zinc coating holds up for several years and then begins to delaminate. Zinc flakes are harder than rust particles and cause more damage to valve seats, seals, and precision pneumatic components. A galvanized system that's started shedding zinc is a worse situation than bare carbon steel shedding rust. Most compressor OEMs, and Kaeser and Atlas Copco are explicit about this in their current installation guidelines, have stopped recommending galvanized for compressed air.

This is a point of contention with some of the older maintenance engineers and pipefitters who've been specifying galvanized their whole careers and had it work fine. And it probably did work fine for the first eight or ten years. The problems show up after that.

Direct metal-to-metal contact between aluminum and carbon steel, with condensate providing the electrolyte, creates a galvanic cell that accelerates corrosion at the junction beyond what either metal experiences alone. Every aluminum-to-steel transition in a partial retrofit needs a dielectric isolating fitting or gasket to break the electrical path. Transair and others make transition fittings designed for this specific application.

Full tearout and replacement with aluminum avoids the issue entirely, and a corroded steel system that's eight-plus years old and producing chronic downstream problems is worth evaluating for complete replacement. The payback calculation requires totaling up all the scattered corrosion-related costs, energy waste from elevated compressor setpoints, accelerated filter and component consumption, maintenance labor, production interruptions from pneumatic failures, and comparing that to the cost of new aluminum pipe and install labor.

Compressed air leaks are a whole separate problem that exists regardless of pipe material. DOE BestPractices publications and the Compressed Air Challenge program have been hammering on this for two decades. Leak rates of 20-30% of total compressor output are common in unaudited systems. Aluminum mechanical fittings are not leak-proof by nature. They can leak at the O-ring if the pipe wasn't deburred before insertion, or if the fitting wasn't fully seated. The difference is that a leaking aluminum fitting is a quick fix. Re-seat it, replace the O-ring, done. A leaking weld on steel is a bigger project. A threaded steel joint that's backed off from vibration and thermal cycling needs depressurizing and re-sealing.

Condensate management is another one. Aluminum eliminates the corrosion problem. It does not eliminate condensate. Water still drops out in the piping and still needs to be drained before it reaches point-of-use equipment. Automatic drain traps at low points, properly installed and maintained, are necessary regardless of pipe material. Some people seem to think aluminum pipe solves all their compressed air quality issues and it doesn't. It solves the corrosion issue. Oil carryover, atmospheric contaminants from the compressor intake, and moisture management are still there.

Pipe sizing errors can overshadow the material choice entirely. An undersized aluminum system with 20-25 m/s velocity in the main header is going to have high pressure drop and pressure instability at the ends of the system, and it won't matter that the pipe wall is smooth because the velocity is the dominant factor. Getting the diameter right for the design airflow is more important than the material decision. There are plants running oversized steel systems that perform perfectly fine on pressure delivery, and plants running undersized aluminum systems that struggle with pressure drop, because the sizing was wrong and no amount of smooth pipe wall fixes a velocity problem.

Loop versus dead-end header configuration affects pressure stability and condensate behavior. A looped system keeps air moving, provides more stable pressure at takeoff points, and reduces condensate pooling. This benefits any pipe material. With steel it's especially important because stagnant dead-end legs are exactly where corrosion concentrates. With aluminum the corrosion argument disappears but the pressure stability and condensate pooling arguments for loops remain.
