CFM Requirements for Common Pneumatic Tools A Quick Reference Chart
Technical Guide

CFM Requirements for Common Pneumatic Tools

18 min read
Marine Industry

PSI is on the gauge. Everybody looks at the gauge. CFM is not on the gauge, and most people buying pneumatic tools have never measured it, do not own equipment capable of measuring it, and will not measure it. CFM is the volume of air passing through the system per minute, and pneumatic tools eat it. When there is not enough, the tool keeps running. Slower. Hotter. The operator compensates by pushing harder, changing angle, slowing feed rate.

CFM Figures for Common Tools

These numbers assume 90 PSI at sea level.

Pin nailers, brad nailers: 0.5 to 1.0 CFM. Finish nailers running 16-gauge: about 1.0 to 1.5. Blow guns pull 1.0 to 2.5. Airbrushes 0.5 to 1.5. Upholstery staplers around 1 to 2. Tire inflators maybe 2 CFM intermittent. None of this matters from a sizing perspective. Any compressor handles these.

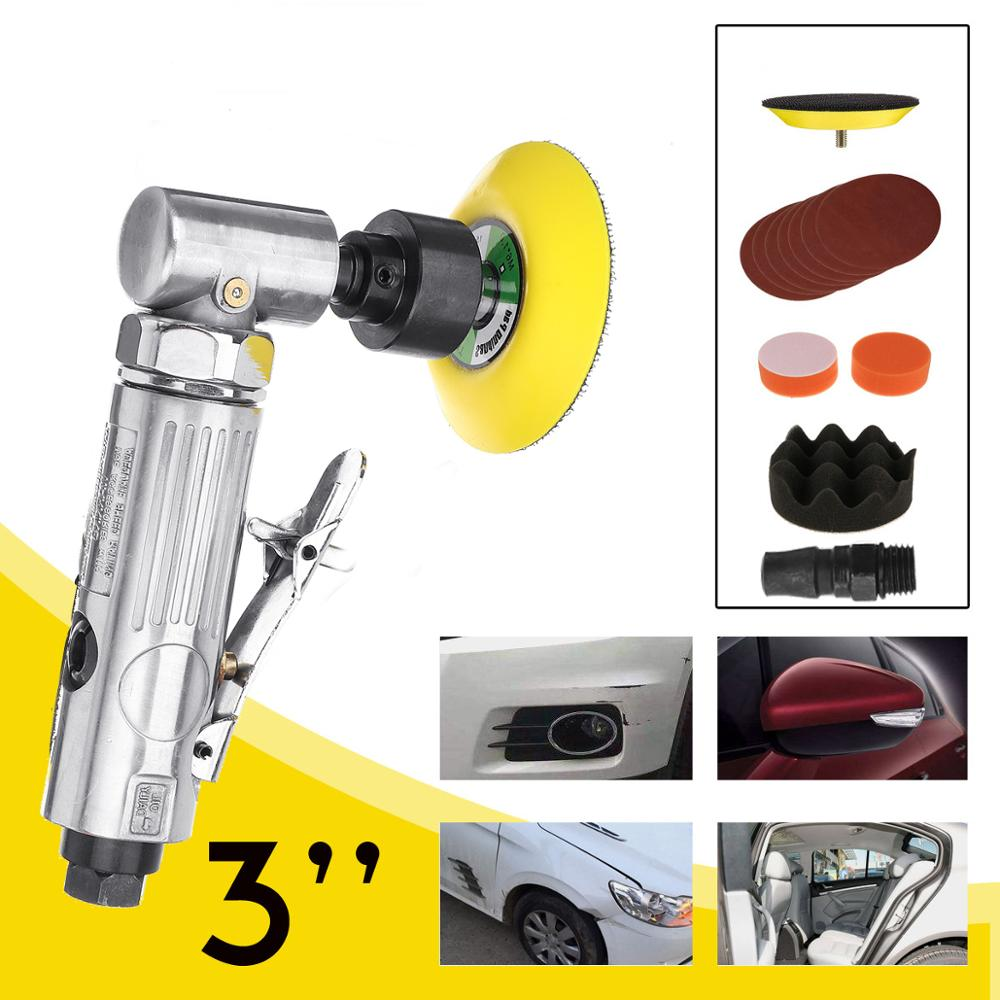

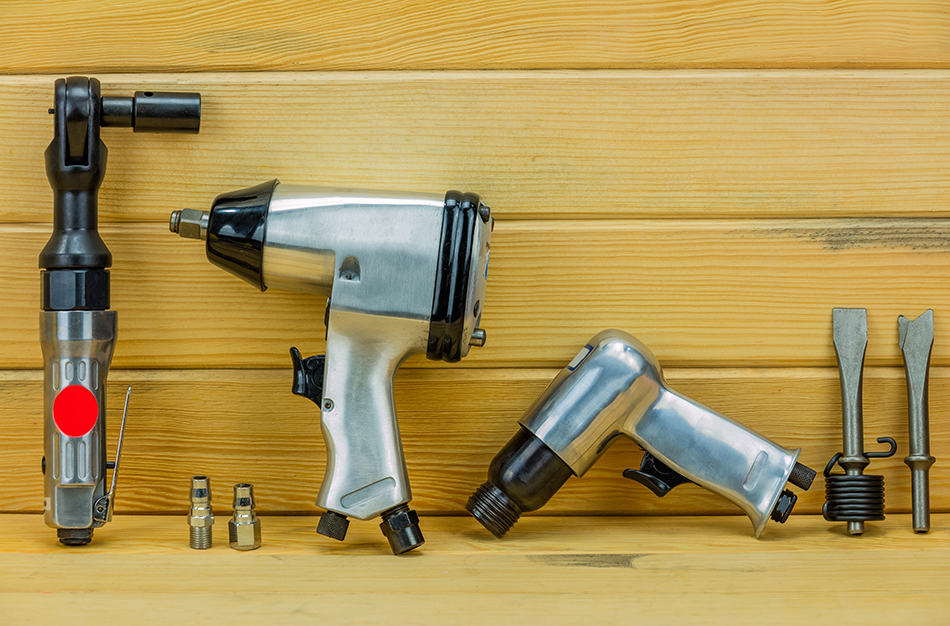

Framing nailers draw 2 to 4 per cycle. Three-eighth air ratchets, 2.5 to 4.5. Gravity-feed detail guns, 3 to 6. Die grinders 4 to 6. Three-eighth reversible air drills about the same. Three-inch cut-off tools 4 to 6.5.

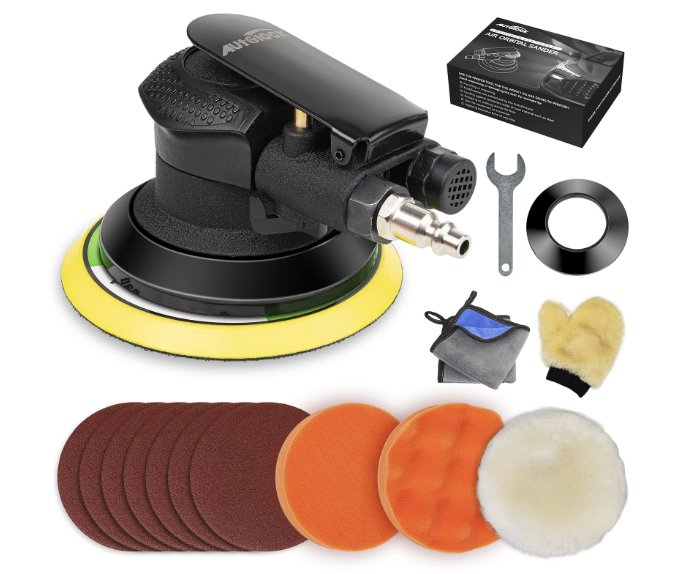

DA sanders are the problem in this group. A 5-inch or 6-inch dual-action sander pulls 6 to 8 CFM. That number does not pulse. It does not average down. The pad is on the panel and the motor is drawing 7 CFM the entire time. A 30-gallon single-stage compressor can keep up with everything else in this bracket. The DA sander will push it.

Half-inch impacts: 4 to 8. That range is so wide it is almost useless as a planning number. Check the specific model. A compact stubby impact and a long-anvil heavy-duty impact do not belong in the same row of a chart even though they accept the same socket size.

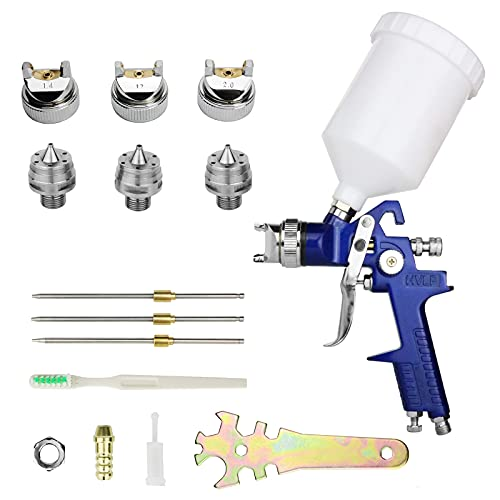

HVLP production guns pull 8 to 14 CFM. Heavy orbital sanders 6 to 9. Air hammers 3.5 to 7. One-inch industrial impacts: 10 to 16. Siphon sandblasters with small nozzles, 12 to 20 or more.

HVLP guns are the single tool category most responsible for forcing compressor upgrades. A shop that was fine with everything else buys an HVLP gun and suddenly nothing works right.

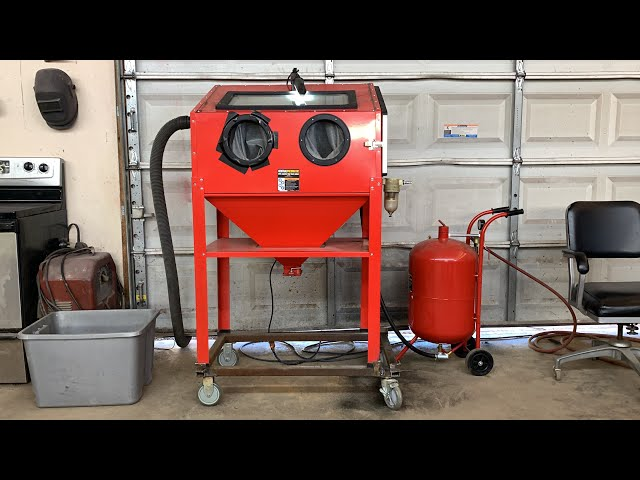

Pressure-pot sandblasters with 3/16-inch-and-up nozzles need 20 to 50+ CFM. This is a different conversation. Portable compressors are irrelevant at this level. Two HVLP guns running simultaneously in a body shop put the demand at 20 to 28 CFM. That is where 10 HP two-stage units with 80-gallon tanks become the minimum, not the recommendation.

What Happens Between the Compressor and the Tool

Compressor specs come from controlled testing. ISO 1217, CAGI data sheets. Clean filter, 68°F, no plumbing downstream. Free-air delivery measured at atmospheric pressure, zero back-pressure.

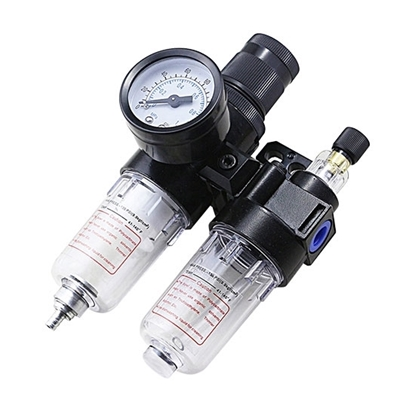

Shop air goes through check valves, pipe, hose, tees, an FRL unit, at least two quick-connect couplers. Every one of those costs volume. How much? Industrial auditors who stick insertion flow meters at tool inlets consistently measure 25 to 40 percent less than the nameplate. Old filters, small fitting leaks, corroded pipe interiors make it worse.

That gap is not a malfunction. It is plumbing.

25-40%
Typical Delivery Loss
10-15%
Thermal Output Loss
6-16PSI
Coupler Pressure Drop

Thermal Loss

A piston compressor at cold start is at peak volumetric efficiency. Cylinder walls are cool, intake air is dense. Twenty minutes in, the pump head is hot. Incoming air heats up before the piston even compresses it. Hot air is less dense. Same displacement per stroke, fewer molecules.

Single-stage units running hard in August can shed 10 to 15 percent versus their cold-start number. Two-stage machines handle this better because the intercooler between stages pulls heat out before the second compression phase, and that partially restores charge density. This is one of the reasons two-stage compressors cost more. It is also one of the reasons shops that spray or sand for hours at a stretch cannot get by on single-stage equipment even when the nameplate CFM looks sufficient.

The cold-start number is the only number that gets published. It is the best number the compressor will ever produce. Everything after minute twenty is lower.

Couplers

Standard Industrial Interchange couplers, Type I, ship with almost every retail hose kit. The bore is around 0.16 to 0.19 inches. Put two of these in series feeding 8 CFM and expect 6 to 16 PSI pressure drop before air enters the tool. That pressure loss converts directly into reduced motor airflow.

Type V high-flow couplers open the bore to around 0.31 inches. Cost is under $30 for a set. Swap takes five minutes. On a system that was marginal, this one change can be the difference between a tool that performs and a tool that does not. It is the cheapest upgrade in pneumatics and the one most often overlooked.

Moisture

A 10 CFM compressor running 90 PSI at 80°F ambient can put 8 to 15 gallons of water through the system over a full shift. Most of it moves as vapor and aerosol. Painters know what water does to finish work. Fewer people think about what happens inside a die grinder running eight hours a day, five days a week, breathing wet air. Vane tips pit. Bearing races corrode. The lubricating oil film on the cylinder wall emulsifies into a milky sludge that seals nothing and lubricates nothing.

Refrigerated dryers that bring the pressure dew point down to 35 to 40°F are considered standard in paint booths. They should be considered standard for any shop running rotary tools at production pace. The rebuild interval on dry air versus wet air is a calculable dollar figure, and the dryer pays for itself.

Air Motor Design

Vane motors. Four, five, six, or seven vanes. More vanes means a more even expansion cycle and more energy extracted per air charge before it exhausts. A 6-vane motor doing the same work as a 4-vane motor will consume roughly 10 to 15 percent less air. That is a measurable efficiency gap.

Shinano, Vessel, SP Air, Kuken. These four build air motors with tight vane-to-housing clearances. Ingersoll Rand's industrial line performs well on this metric too. Certain Snap-on models are rebranded Japanese production with housing modifications, and the motor inside is good.

Budget impacts and die grinders from hardware store house brands tend to use 4-vane motors with sloppy tolerances. Put a Harbor Freight air ratchet and a Vessel air ratchet both rated at 4 CFM on a weak compressor. The Vessel holds governed speed as tank pressure sags. The Harbor Freight drops off a cliff sooner. The motors inside cost $30 and $90 respectively. On a generous air supply the difference shrinks. On a tight one, it becomes the entire experience.

Chicago Pneumatic is two different companies wearing the same badge. The CP7xxx industrial series uses well-built, tight-clearance motors. The consumer-facing tools sold at hardware retailers share the name and nothing else. The motors are different. The tolerances are different. People buy the consumer tool expecting industrial quality because the brand name is the same. This has been going on for years and CP has not clarified it and presumably has no interest in clarifying it.

Florida Pneumatic. The housings feel like they were cast in someone's garage. The ergonomics are an afterthought. The appearance is bargain-bin. The air motors inside are efficient for what they cost. On a constrained compressor, an FP die grinder will outperform several tools that cost twice as much and look three times as good.

There are impact wrenches on the market, and this applies to several brands whose specific models rotate seasonally through retail, that advertise 800 or 1,000 ft-lb on the box. The torque number is measured at the motor shaft under laboratory air supply conditions. The tool ships in a kit with a hose and couplers that restrict flow to maybe 60 percent of the motor's design requirement. The tool cannot produce the rated torque through the accessories it comes with. The torque claim and the included accessories are designed by different departments with different goals. One department writes the biggest number that is defensible under test conditions. The other department sources the cheapest hose and couplers that fit in the box. The buyer connects the hose, attaches the couplers, and gets 500 ft-lb while staring at a package that says 1,000.

Air Starvation Damage

A rotary tool getting less air than it needs does not stall out. The governor opens the inlet all the way. The motor runs in partial stall. Vanes that are supposed to float on a pressurized oil-air film start making dry contact with the cylinder wall instead. Microscopic scoring. Each contact leaves a mark. Hundreds of hours of this and the cylinder bore has fine longitudinal lines visible under magnification.

Bearings take more load at reduced speed because the rotor loses gyroscopic stability and deflects under cutting force. Exhaust runs hotter because each cubic foot of air is doing more work than the motor was designed for.

A technician opening one of these tools after six or eight months of starved operation finds asymmetric vane tip wear, the scoring pattern described above, and heat discoloration on the bearing races. Contamination damage looks different: random pitting. Abuse damage looks different: deformation, chipping. Starvation damage is regular and progressive and follows the vane contact geometry precisely.

The tool gets blamed. The air supply was wrong the entire time.

Pulsed Demand Versus Continuous Demand

A framing nailer rated at 2.5 CFM draws that figure during the fraction of a second it fires. Over a working rhythm with natural pauses between shots, sustained consumption averages maybe 0.3 to 0.6 CFM. A 6-gallon pancake compressor keeps up.

A DA sander rated at 7 CFM draws 7 CFM from the instant the pad touches the surface until it lifts off. No pauses. No averaging. The compressor either delivers 7 CFM continuously or the sander slows down within seconds.

Both tools appear in CFM charts. The numbers next to them are not comparable. A nailer at 2.5 and a sander at 7 are not separated by a factor of three in compressor demand. They are separated by an order of magnitude in how they consume air over time. Anything held on trigger for more than about ten seconds is continuous-demand. Size accordingly.

Impact Wrench Breakaway Spike

Published CFM for impacts is an average over a typical use cycle. Breakaway against a seized fastener draws 40 to 80 percent above average for a fraction of a second. Rapid trigger pulls across a set of lug nuts or head bolts means the tank never fully recovers between hits. Each breakaway starts from a lower pressure base than the one before. By the fourth or fifth fastener in a fast sequence, available torque has dropped.

Size 30 percent above the published average. That covers the cascading pressure drop in most automotive sequences.

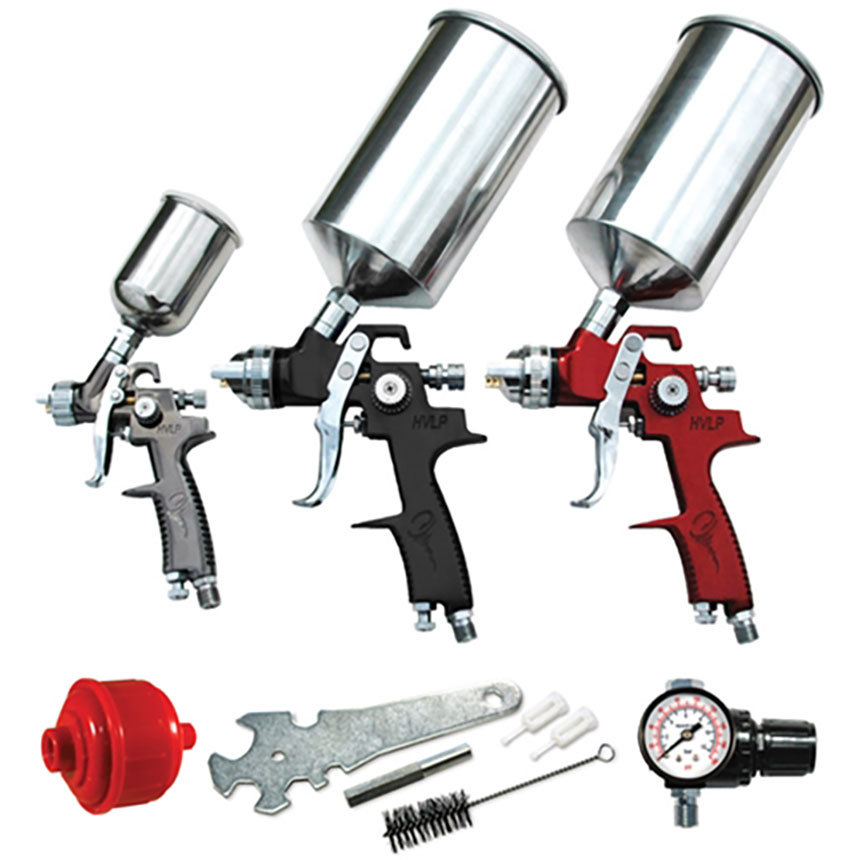

HVLP Gun Performance Under Reduced CFM

An HVLP gun rated at 11 CFM getting fed 8 CFM does not produce a slightly worse finish. The atomization pattern deforms. Fan width collapses on one side or both. Material lays down unevenly. One panel sprayed under these conditions can cost $100 or more to rework in a production environment when sandpaper, fresh material, masking supplies, and labor time are totaled.

Single-gun production spraying needs 14 to 18 CFM sustained at 90 PSI out of a two-stage compressor. That is where the airflow issue goes away and the painter can focus on technique. Below that range, the equipment is the limiting factor, and no amount of skill at the gun compensates for inconsistent atomization.

Altitude

Denver, 5,280 feet. A compressor there produces about 17 percent less output than the same unit at sea level. At 7,000 feet the reduction is 22 to 25 percent. That 12 CFM compressor at 7,000 feet is a 9 to 9.5 CFM compressor in sea-level-equivalent terms.

This is simple arithmetic. Shops at elevation that have tried new hoses, new fittings, new filters, sometimes new tools, and still cannot get satisfactory performance from equipment that should be adequate on paper are experiencing altitude loss. The compressor is producing everything the thin air allows.

Oil-Free Compressor Output Decline

Oil-free piston compressors seal their cylinders with dry rings, Teflon or carbon composite. These wear faster than oil-lubricated rings. A new 8 CFM oil-free unit delivers maybe 7.2 to 7.5 CFM at 90 PSI from the factory. A few hundred hours in, blow-by increases and output drops to 6.0 to 6.5. This decline is gradual. Without a flow meter, it is invisible.

Oil-lubricated compressors maintain rated output far longer because the oil film continuously reseals the piston-to-cylinder gap as the rings wear. For anything above 5 CFM sustained demand, oil-lubricated is the appropriate compressor type. Oil-free units serve dental offices, food processing, breathing air systems. They are not shop machines. They get sold in shops because "oil-free" sounds like less maintenance to a buyer who does not understand what the oil was doing.

Simultaneous Use and Hose Sizing

Add up the CFM of every tool running at the same time. Add 25 percent for system losses. Hose runs over 25 feet feeding tools above 5 CFM need 3/8-inch ID minimum. Quarter-inch hose at high flow rates has enough pressure drop to degrade performance independent of compressor capacity. The hose becomes the bottleneck even if the compressor and tool are perfectly matched.

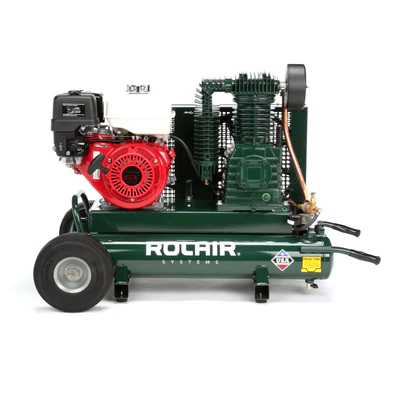

Compressor Sizing

Take the highest-CFM tool. Multiply by 1.3 to 1.5. That is the minimum compressor output at 90 PSI delivered pressure, and delivered pressure is lower than the FAD figure on the sticker.

Tank volume absorbs spikes. Pump displacement determines whether the compressor can sustain a tool. Consumer compressors commonly pair big tanks with small pumps. A 60-gallon tank looks impressive on a showroom floor. The pump behind it might deliver 11 CFM and the sticker says 14 because the 14 is free-air delivery, not what the tool receives through fifty feet of hose and two couplers and an FRL. The pump displacement spec is often in small print or buried in the owner's manual. Find it. Derate it 20 to 30 percent for system losses. Compare the resulting number to the tool's requirement. If it falls short, buy the next size up. There is no trick for making a small pump deliver more air.
