How Much CFM Do I Need — A Sizing Guide by Application

CFM. Cubic feet per minute. A volume measurement on every compressor, fan, and dust collector nameplate. Sizing guides online give a lookup table. This goes beyond the table.

Pick up two compressors at Home Depot. One says 6 CFM. The other says 4.8 CFM. The 6 seems like the obvious buy. It might be the worse machine.

The label doesn't say which of three possible CFM measurements it used. Displacement CFM is a geometry exercise: bore area times stroke times RPM. The volume the piston sweeps through if ring seals never leak, valves have zero response time, and intake air stays at room temperature inside a cylinder running 300°F. None of that is real. The number overstates delivered output by 30 to 40% on a decent machine, worse on cheap single-stage units with stamped valve plates. That 6 CFM compressor might deliver 3.8 at the port. The 4.8, if tested and verified by CAGI's third-party program, might deliver 4.5. The "smaller" machine wins.

SCFM corrects delivered output to standard conditions: 14.5 PSIA, 68°F, 0% humidity. Comparison number. ACFM is what comes out at local altitude and temperature. A 10 SCFM machine in Leadville, Colorado (10,152 feet) delivers about 7 ACFM. At sea level, the full 10.

CAGI's verification program is voluntary. Look up the brand at cagi.org/performance-verification. In the directory? Tested. Not in the directory? Not tested. That's all that needs to be said.

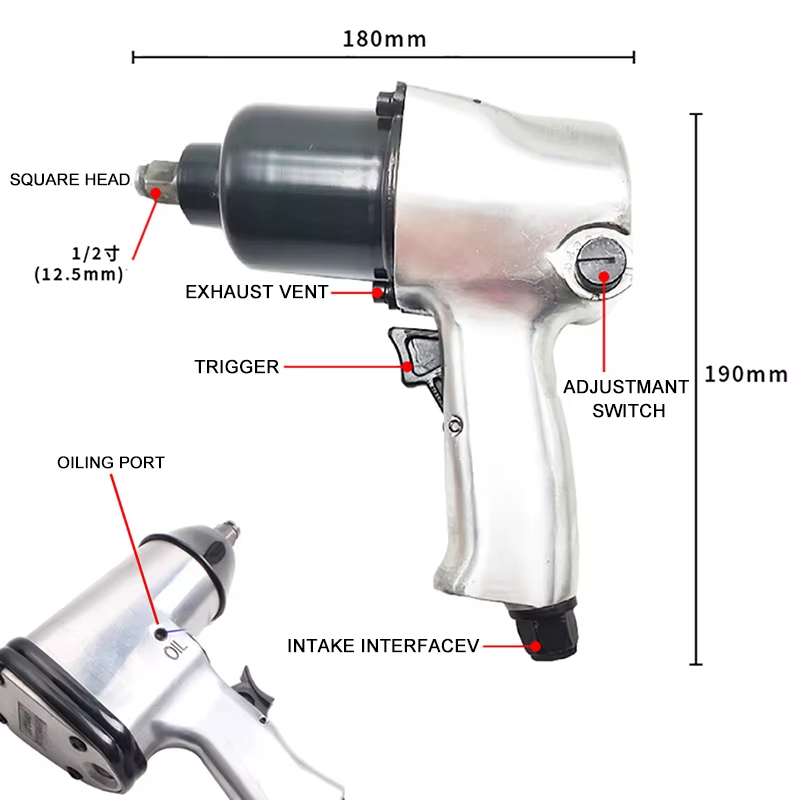

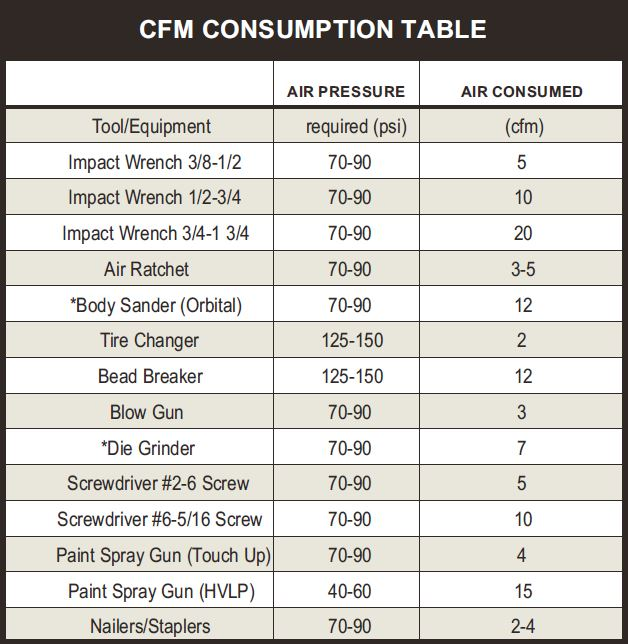

All peak draw.

Spray guns and sanders are continuous. Trigger down, 12 CFM, for minutes at a stretch. If the compressor sustains less than the tool demands, tank pressure bleeds off. A 60-gallon tank behind an 8 CFM compressor feeding a 12 CFM spray gun buys a few extra minutes. The tank delays the failure. It does not fix it.

Compressor Selection

Matching Duty Cycle to Tool Demand

Reciprocating compressors have duty cycle limits because the cylinders, head, and valve plate build heat. A 15 CFM unit at 75% duty cycle sustains about 11 CFM. Consumer packaging does not print duty cycle. Rotary screw compressors run continuously. A 12 CFM rotary screw beats a 15 CFM recip on any sustained job. The spec sheet makes the recip look bigger. On the shop floor, the screw wins.

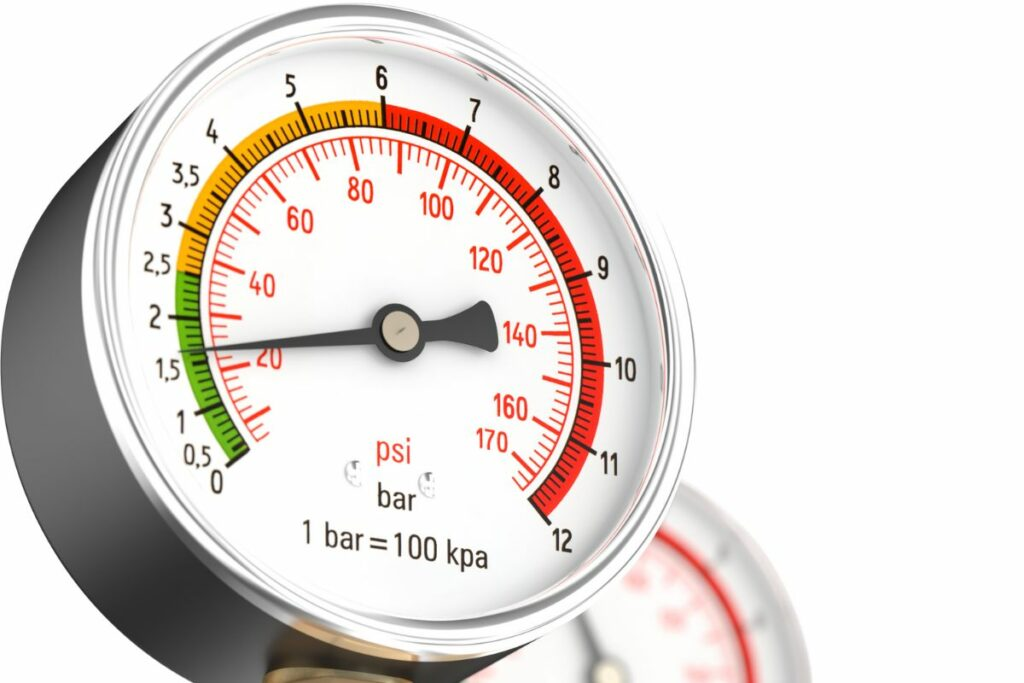

Most pneumatic tools hit rated performance at 70 to 75 PSI at the inlet. 90 PSI at the compressor is headroom for line losses. Shops with short runs and good fittings that drop to 80 PSI save about 7% on electricity.

The formula is simple. What breaks is the part between the formula and the air moving through the building.

A fan rated 110 CFM was tested blowing into open air. Nothing attached. Connect 12 feet of 4-inch flex duct with two elbows and a roof cap with a gravity damper, and the fan delivers 60 to 70 CFM. The bathroom stays humid after showers. The fan is not broken. It is delivering what its performance curve predicts at 0.3 to 0.4 inches of water gauge of system resistance. The number on the box is the zero-resistance number.

Stall Risk

Axial Fan Curves

Smooth Curves

Centrifugal Fan Curves

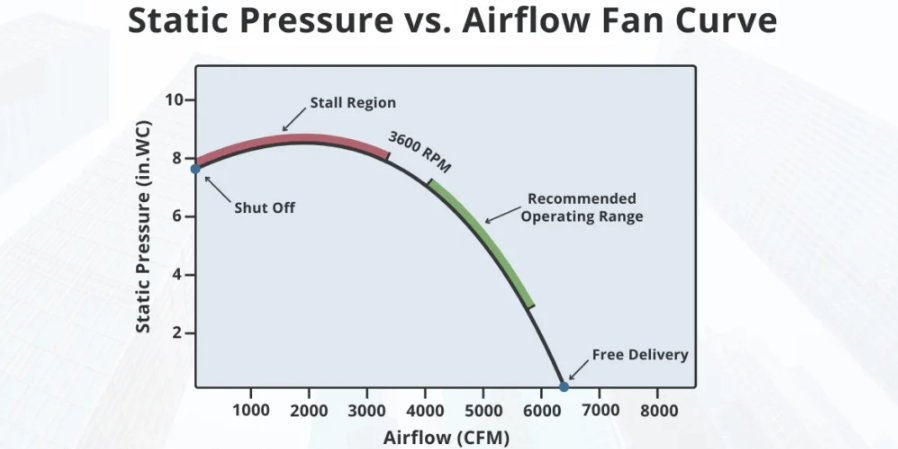

Every fan has a performance curve: CFM on the horizontal axis, static pressure on the vertical. The rated CFM is the rightmost point, at zero resistance. Add duct. The operating point slides left. Less air. Sum every loss in the system (straight duct, elbows, transitions, filters, grilles, dampers) into a total static pressure number. Find it on the curve. That's the delivered CFM.

Axial fans have a hump in the mid-to-high static pressure region of their curve, past which is stall territory. The fan surges, airflow drops by half, the motor keeps drawing power. Centrifugal fans have smooth curves with no stall region. For anything with real duct resistance, centrifugal fans are more stable. The choice is about what happens when conditions shift, not about which type has a bigger catalog number.

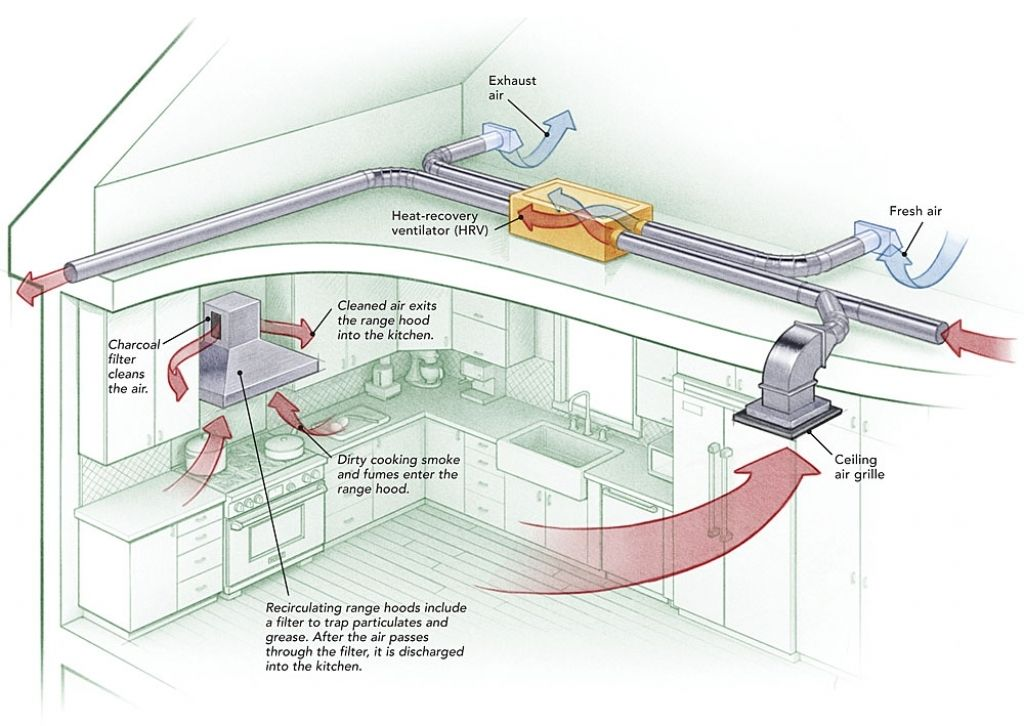

Makeup air: whatever volume the exhaust removes, the same volume has to enter the building. Negative pressure in a building with natural-draft gas appliances (water heaters, furnaces, boilers) can reverse the flue. Combustion gases including carbon monoxide come back indoors instead of going up and out. The CPSC's annual non-fire CO fatality reports consistently identify fuel-burning appliances as a leading source category. NIOSH has published health hazard evaluations from commercial kitchens documenting CO exposures traced to exhaust hoods operating without makeup air while gas equipment backdrafted.

Building tightness changes where replacement air enters. A tight envelope goes negative the moment a fan turns on. An older leaky building admits air from everywhere. Whether it enters through the zone the exhaust is supposed to serve is a separate question. A smoke pencil held near the area of concern while the fan runs answers it in about three minutes.

CFM = booth cross-section (sq ft) × face velocity (FPM). Crossdraft: 75 to 100 FPM. Downdraft: 50 to 75 FPM. A 10' × 8' crossdraft booth at 100 FPM: 8,000 CFM.

This application has a ceiling on CFM, not just a floor. HVLP guns achieve 65%+ transfer efficiency at correct face velocity. Too high and atomized paint gets blown past the surface. Transfer efficiency drops below 50%. At coating prices of $40 to $200+ per gallon, that's expensive exhaust filter decoration. Too low and solvent vapor accumulates toward the lower explosive limit. NFPA 33 Section 7.5.1 (2021 edition) sets minimums.

Velocity uniformity within ±20% of average across the face. Dead spots in corners mean uneven finish and localized vapor accumulation.

Different coatings need different velocities. Waterborne coatings evaporate slowly and need airflow to assist drying: higher end of the range. Solvent-borne coatings flash off fast and excessive velocity dries the droplets in flight (dry spray): lower end. High-solids coatings atomize into large, heavy droplets that crossflow deflects: lower end. A shop switching between coating types in the same booth needs adjustable fan speed. A VFD provides this. The inlet damper alternative stays in one position all day because nobody adjusts it during production.

I want to talk about flex duct at length because it is the single largest contributor to residential airflow degradation in the United States and the problem is in millions of homes and almost nobody living in those homes understands it.

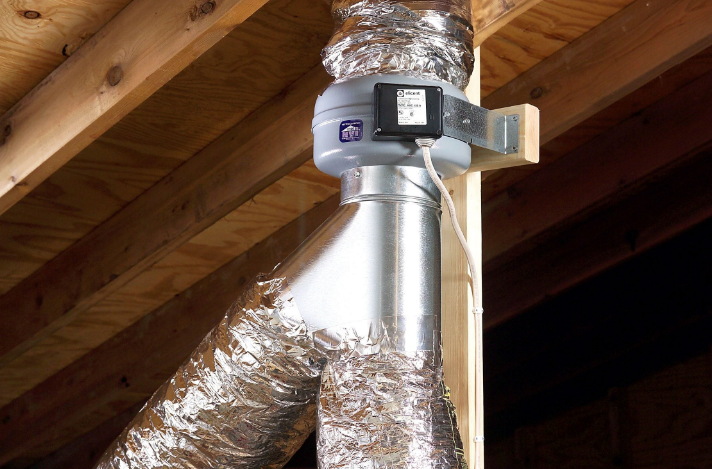

Flex duct is on every aisle at every HVAC supply house. It's cheap. An installer grabs a roll, cuts lengths, shoves them through the attic, connects both ends, straps them to trusses, moves on. A crew ducts a whole production house in hours. Sheet metal would take days. Every builder choosing between a $4,000 flex bid and a $7,500 sheet metal bid picks the flex. This has been the case since the early 1990s. The result is that virtually every production-built house in the U.S. south of the Mason-Dixon line and much of the rest of the country has a flex duct system in the attic, in the crawlspace, or between floor joists.

The corrugated inner liner is what makes flex duct flexible and also what makes it terrible at moving air. Those accordion ridges generate friction and turbulence that a smooth tube does not. Lab-condition comparison: same diameter, same length, flex duct pulled perfectly taut with zero sag, 1.5 to 2 times the pressure drop of smooth sheet metal duct. That is the best case. Stretched tight. Supported properly. No slack.

The Energy Center of Wisconsin published a field study in 2003, ECW Report 233-1, measuring flex duct installations in 43 Wisconsin homes. They went into attics and crawlspaces and measured compression ratios, support intervals, and delivered airflow. What they found: most installations had compression exceeding the assumptions in ACCA Manual D. Delivered airflow in many individual runs was below 70% of design. This is a study of Wisconsin homes. Wisconsin has a small fraction of the flex duct inventory that Texas, Florida, Arizona, Georgia, and the Carolinas have. The practices documented in that study have not changed since 2003 because the economic incentives that produce them have not changed. Installers are paid by the job. Pulling flex tight takes longer than leaving it loose. Cutting exact lengths takes longer than cutting long and stuffing the excess into the boot connection.

What does flex duct look like in an actual attic? Go up into a ten-year-old production house in any Sun Belt state. Duct draped over trusses. Kinked where it rounds a corner. Sagging between support straps that are four feet apart or more. Extra material bunched at boot connections because the installer cut long and jammed the excess in rather than recut. Multiple runs crossing over each other with one compressing the other at the crossover point. Insulation facing torn open at turns, exposing the inner liner to attic air temperature. Run after run, every one underperforming.

Sag between supports is its own problem and it is ubiquitous. A 6-inch flex duct strapped at 4-foot intervals sags at the midpoint between straps. The belly of the sag pinches effective diameter to 4.5 inches or less. Air accelerates through the constriction, turbulence develops on the exit side, and the pressure drop at that single sag point can rival the entire rest of the run. It's the equivalent of putting a partial damper in the middle of the duct. Every sag point does this. Every run has multiple sag points.

The return side compounds the flex duct problem. Residential systems commonly have one central return grille. One. Mounted in a hallway or near the air handler closet. The entire supply airflow for the system has to come back through that single grille and single filter slot. When the filter is clean, the grille is tight but functional. When the filter has accumulated two months of dust, the grille is a bottleneck that adds measurable static pressure to the system. The blower fights harder and moves less air. Every supply register in the house underperforms.

Close bedroom doors at night and the return path from those bedrooms functionally disappears unless transfer grilles or dedicated return ducts exist, and in production housing they usually don't. Supply air pressurizes the bedroom. It leaks out around the door frame, under the door, through any gap it can find. The thermostat is in the hallway near the return grille. It reads comfortable air and cycles the system off. The bedroom is still warm.

HVAC contractors have been arguing about the door-closed problem for decades. The two camps: camp one says install jumper ducts or transfer grilles to give each bedroom a return path (more labor, more material, builder doesn't want to pay for it), camp two says cut the doors a half inch short so air can flow under (ugly, doesn't work well on carpet, and doesn't provide nearly enough free area for a room getting 100+ CFM of supply). Production builders tend to do neither and hope nobody complains.

Filter upgrades are another layer. A homeowner swaps the builder-grade MERV 8 for a MERV 13 because they read an article about indoor air quality. MERV 13 media is denser. More resistance. On a system already running tight on static pressure from all the flex duct and return issues described above, the added resistance drops airflow further. The house still cools. Slower. The electric bill goes up. Humidity feels worse. Nobody connects the filter to any of it because the system doesn't throw a code or make a new noise. It quietly underperforms.

Some filter companies make MERV 13 in deep-pleated 4-inch or 5-inch media packs that spread the same filtration over more surface area and keep resistance closer to MERV 8. These require a filter cabinet that most residential air handlers are not built to accept. Retrofitting one in is possible and not expensive, but it requires awareness that the option exists, and most homeowners don't know.

Evaporator coils collect dust on their fins over years. Fine particles get past the filter, hit the wet coil surface, stick. Three to five years of gradual accumulation before anyone would notice a performance change. Most homeowners never notice at all. They attribute the gradually worsening cooling to the system aging.

Now stack everything in one house. Compressed and sagging flex duct across all supply runs. One undersized return grille. A MERV 13 filter in a 1-inch slot. Four years of coil fouling. Each one takes a bite out of airflow. Together they compound. A system designed for 1,200 CFM delivers 800 to 850. Cooling capacity drops. Dehumidification drops faster because moisture removal depends on air volume across the wet evaporator coil. The coil surface temperature falls below 32°F. Frost forms on the fins. Frost blocks air. Less air means colder coil. More frost. Ice. A solid sheet across the evaporator. The refrigerant suction line outside frosts. The compressor slugs liquid. A safety trips or the homeowner sees ice on the outdoor unit and calls someone.

The service tech thaws the coil, measures airflow, finds it low, and starts tracing causes. Usually finds several of them stacked.

I spent a lot of space on this section and not much on some of the others. The reason is that bad flex duct installations affect more people than all the other CFM problems in this article combined. Server rooms have engineers. Paint booths have codes and inspectors. Dust collection shops have hobbyists who obsess over performance. Millions of homeowners are sitting in houses with flex duct problems right now and have no idea, and the industry that installed the duct is not going to tell them.

Data Center Cooling

Heat Load Drives CFM Requirements

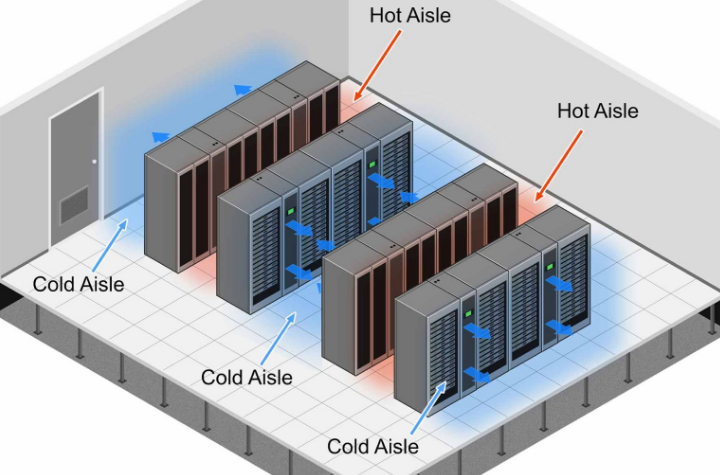

Narrow ΔT: uniform rack temps, higher fan energy. Wide ΔT: lower fan energy, risk of exceeding ASHRAE-recommended inlet temps at the top of the rack. Hot aisle / cold aisle containment separates supply from exhaust.

The waste problem is bypass airflow. N+1 CRAC redundancy means total supply CFM exceeds IT demand. Surplus cold air leaks through tile gaps, cable cutouts, empty rack positions. Mixes with hot exhaust. CRAC sensors read a blended return temperature and modulate down. Servers run warm while the cooling system has spare capacity.

Lawrence Berkeley National Laboratory's data center benchmarking work (published through DOE's Better Buildings program) has measured bypass fractions of 30 to 60% of total supply air in raised-floor environments without containment. Schneider Electric's White Paper 44, which includes thermal measurement data, showed 3 to 5°F inlet temperature drops at the top of racks after installing blanking panels in the same row.

Blanking panels: $2 to $5 per rack U position. Brush grommets for cable cutouts. Controlling which floor tiles are perforated. These items, collectively under a thousand dollars for a moderate-sized room, have outperformed $50,000 CRAC additions in documented assessments because the new CRAC just pushes more air through the same leaky floor.

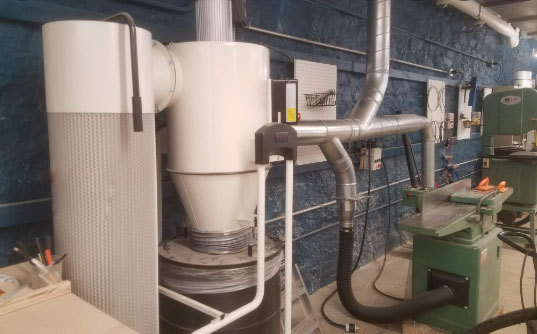

The constraint that makes dust collection different from HVAC ductwork: transport velocity. If the air speed in the duct drops below a threshold, particles fall out of the airstream and settle. Accumulation narrows the duct. Resistance increases. More settling. Eventually a clog, and in a duct full of fine wood dust, a fire hazard. ACGIH's Industrial Ventilation manual (30th edition, 2019, Chapter 13) specifies minimums. Fine wood dust needs 3,500 to 4,000 FPM. A 4-inch branch at 4,000 FPM: about 350 CFM. A 6-inch branch: about 785 CFM.

Blast gates on each branch concentrate the collector's output on the active machine. Design for one or two gates open at a time. Open all six and velocity in each branch drops below transport threshold. Automatic gates wired to machine power circuits ($30 to $50 per gate for solenoid units with current-sensing relays) remove the discipline problem.

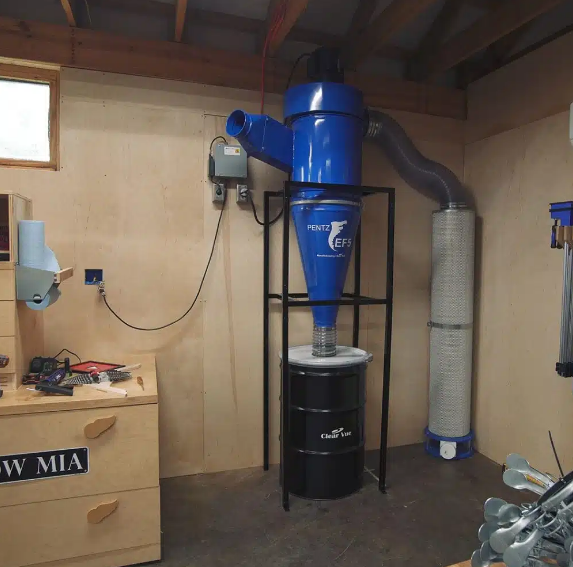

Adding a cyclone pre-separator catches large particles before the filter bags. Extends filter life. Adds 2 to 4 in. w.g. of system resistance. Suction at tool ports drops. Measure branch velocity with an anemometer after installation. If below 3,500 FPM, spin the blower faster (smaller motor pulley on belt-drive units) or reduce duct resistance elsewhere.

The PVC vs. metal duct debate. Rod Cole measured static charge levels in PVC dust collection systems and published findings in Fine Woodworking issue 140 (2000), concluding that measured potentials fell below wood dust minimum ignition energy. NFPA 652 (2019) requires dust hazard analysis for facilities handling combustible particulates. Home shops commonly use PVC with a grounding wire. Commercial operations use metal to avoid the argument entirely.

Altitude & Temperature

Environmental Factors Affecting CFM

Air density drops about 3% per 1,000 feet of elevation. Denver at 5,280 feet: about 17% below sea level density. Mexico City at 7,350 feet: about 22%. Leadville at 10,152 feet: about 29%.

These numbers have already been woven through the sections above where they matter (compressor ACFM conversion, fan cooling capacity at altitude). Rather than repeat, the summary: compressors at altitude still displace the same volume, capture fewer molecules per stroke. Fans move the same volume, each cubic foot carries less heat. Motors cool less effectively in thinner air. NEMA MG 1 Section 14.4 calls for derating above 3,300 feet. Temperature: each 20°F above 68°F expands air volume about 4%.

Leakage in industrial compressed air systems runs 20 to 30% of total output. The DOE Compressed Air Challenge program has published this range based on hundreds of plant audits (their tip sheet #3 provides methodology and the figure). A 100 CFM system with 25% leakage delivers 75 CFM to tools. Ultrasonic leak detectors find what ears can't in a noisy shop. Quarterly surveys and repairs recover CFM at a fraction of the cost of buying a bigger compressor to feed the same leaks.

When point-of-use pressure drops more than 10% below compressor discharge, the piping is the bottleneck. Upsizing headers recovers more usable pressure than upsizing the compressor.
