How to Read an Air Compressor Nameplate with Every Spec Decoded

Air compressor nameplates come in two pieces. Unit nameplate on the compressor body, motor nameplate on the motor. They describe different things and should be read separately.

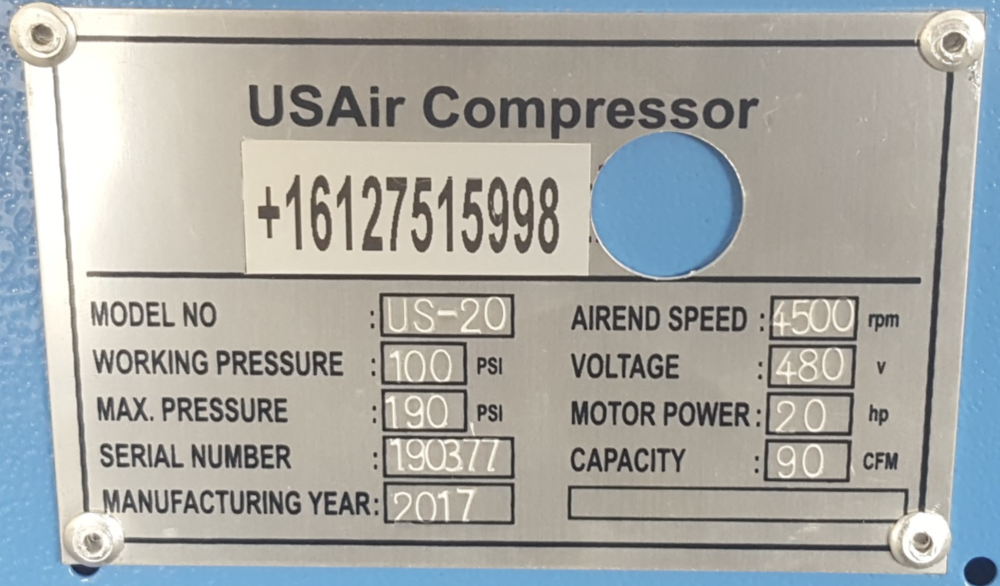

Unit Nameplate

FAD / Free Air Delivery

A nameplate says 100 CFM. That number needs to be pulled apart before anyone does anything with it, and most of this article is going to be about why.

Three possible meanings for that 100 CFM. FAD (free air delivery) converts measured compressed output back to inlet conditions. ANR pegs it to a European reference. Displacement is piston swept volume times RPM: bore, stroke, cylinder count, speed, unit conversion factor, done. No measurement involved. The nameplate does not have to say which one it printed, and in most markets no law requires FAD to appear.

Displacement is always bigger than FAD. How much bigger depends on the machine, and this is where the conversation gets complicated because the variables interact in ways that make simple rules of thumb dishonest.

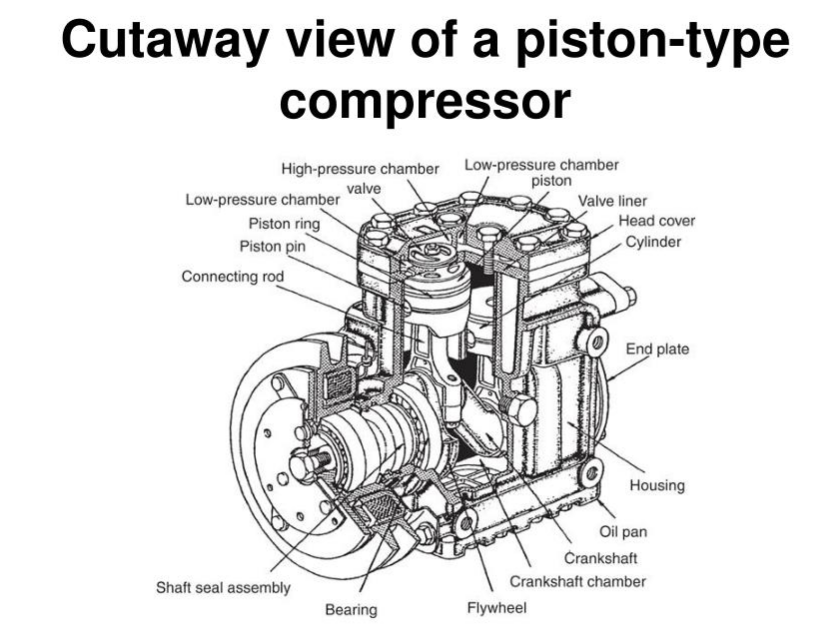

Start with the valves. On a cheap small compressor, the suction and discharge valves are usually single stamped steel plates held closed by a spring. When the piston moves down and creates a pressure differential across the suction valve, the plate lifts off its seat and gas flows through the annular gap between the plate and the seat. The flow area of that annular gap, relative to the bore area, is terrible. Gas loses pressure fighting through the restriction on both the suction stroke and the discharge stroke. Every millibar of pressure lost on the suction side means less driving force pulling fresh air into the cylinder, and every millibar lost on the discharge side means the piston has to push the gas to a slightly higher pressure to get it through the valve, which raises the effective compression ratio and makes everything downstream worse.

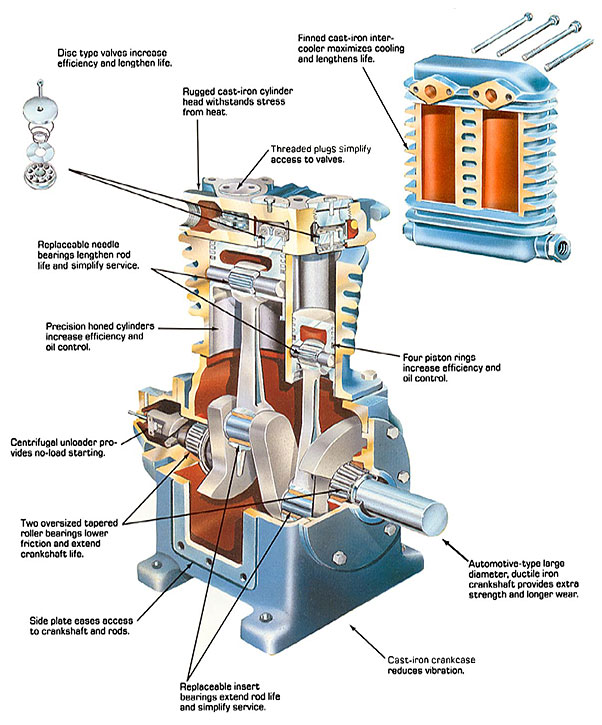

Multi-ring concentric valves are different. Each ring sits on its own seat and lifts independently, so the total flow area is the sum of all the annular gaps of all the rings. For the same bore diameter, the flow area improvement over a single-plate valve is dramatic. Poppet valves on large industrial reciprocating machines go further: individual poppets (mushroom-shaped elements) each on their own guided seat, with flow areas designed for minimal restriction at high gas velocities. The choice of valve determines more about a compressor's volumetric efficiency than most other design decisions combined. Two machines with identical bore, stroke, RPM, and clearance volume will show different FAD numbers if one has a stamped plate valve and the other has a multi-ring or poppet valve assembly. Both nameplates can print the same displacement figure, because displacement does not know or care what valve is installed.

Clearance volume is next. This is the dead space above the piston at top dead center, set by the head casting geometry. Gas trapped in there at discharge pressure re-expands during the intake stroke before the suction valve opens. That re-expansion fills cylinder volume with gas that is not fresh intake air, reducing the effective intake charge. Clearance volume as a fraction of swept volume runs from about 4% on a well-optimized industrial head to 10% or 12% on a cheap casting where the pocket geometry was not refined. The clearance volume effect gets worse at higher discharge pressures because the re-expansion ratio is greater.

FAD also depends on discharge pressure. Higher setpoint, lower delivery. The nameplate gives one flow at one pressure.

CAGI runs a voluntary third-party verification program. Compare a CAGI datasheet to the nameplate on the same model and the inflation becomes visible. Participation is limited outside North America.

Everything else on the unit plate

Rated pressure: psi, bar, MPa. "Max Pressure" if printed separately is the relief valve setpoint. Two-stage machines only show final discharge.

Specific energy: kW/(m³/min). If the delivery number feeding the denominator is displacement, the figure is fiction.

Cooling: Air-Cooled or Water-Cooled. Max Ambient Temperature on air-cooled units, 40°C or 45°C, measured with test bench ventilation that bears no resemblance to the closets and containers compressors end up in. Experienced service techs check the room before they check the machine.

Lubrication: Oil-Injected or Oil-Free. "Oil-Free" on a nameplate and Class 0 per ISO 8573-1 are not the same. Some "Oil-Free" machines have wet gearboxes with leaky shaft seals. Class 0 is lab-verified. Auditors in pharma and semiconductor work ask for the report.

Noise: dB(A) at 1 meter, controlled conditions. Logarithmic. Add several dB on site.

Refrigerant: only on units with built-in dryers. R22 on secondhand equipment is a liability since production was phased out under the Montreal Protocol in developed countries as of 2020.

These do not need the same depth as FAD because they do not cause the same volume of sizing errors or wasted money.

Motor Nameplate

Power and Efficiency

HP or kW. Shaft output. Not grid input. Cable and breaker sizing need grid input.

Efficiency appears as a percentage or IE class. The nameplate gives full-load efficiency. At partial load it degrades because the motor's fixed losses stay constant while useful output drops. A 30 kW motor at half shaft load draws around 18 to 20 kW, not 15.

Growth capacity gets specified during design, the growth does not come, and the motor runs at 30% to 40% load for years because there is no business process in most organizations that triggers a re-evaluation of compressor sizing after the project closes. The project engineer moved on. The maintenance team inherited whatever was bought. Motor loading does not appear on anyone's KPI dashboard.

Voltage, Phase, Frequency

Read these as a group.

Phase imbalance kills compressor motors at a rate completely out of proportion to the attention it gets. NEMA MG1 §14.36 recommends below 1% voltage imbalance and presents data showing 3.5% imbalance increases winding temperature rise about 25%. Industrial buildings run 2% to 5% routinely because single-phase loads sit unevenly across phases. The failure pattern at affected sites looks like chronic bad luck with motors: winding failure, replacement, another failure in two years, another replacement. The pattern breaks when someone finally measures three phase-to-phase voltages at the disconnect (one minute with a handheld meter), finds the 4% imbalance that has been there since the building was wired, and gets the electrician to rebalance the panel. In commissioning paperwork from non-OEM installers, this measurement is absent almost every time.

Frequency: 50Hz or 60Hz. A 60Hz machine on 50Hz loses 17% of motor speed, FAD drops proportionally, core saturation increases, and the cooling fan and oil pump slow down too. Harder to fix than voltage or phase problems. Check first on imported equipment.

FLA

Steady-state current at nameplate conditions. Sets cable, breaker, contactor sizing. LRA is startup inrush.

"Inverter Duty" or "VFD Ready" means winding insulation reinforced for dV/dt transients per NEMA MG1 Part 31. On VFD retrofits of older compressors, if this marking is absent, either replace the motor or install a dV/dt filter between drive and motor.

RPM and the Slow-versus-Fast Argument

Full-load speed, slightly below synchronous from slip. Same head on a 2-pole versus a 4-pole: displacement doubles, piston speed doubles, noise and wear go up.

For a given air demand there is a tradeoff between a large head at low speed and a small head at high speed. Large slow combination: more money, more floor space, overhaul intervals stretch to 16,000 or 20,000 hours. Small fast: cheaper, compact, overhauls at 8,000 to 12,000 hours. Over a decade the slow machine tends to cost less total when overhaul parts, labor, and production downtime are included. The fast machine wins the bid almost every time because capital budget and maintenance budget are different line items controlled by different managers with different incentives. The person signing the purchase order does not carry the maintenance budget.

Service Factor

S.F. 1.15: motor sustains 115% of rated power continuously, at higher temperature and shorter insulation life. NEMA carries 1.15 or 1.25. IEC defaults to 1.0. Same kW, different capability.

Clamp meter on the conductors during loaded operation, compare to nameplate FLA. Current above FLA means the motor is in the Service Factor zone and nameplate power was understated. This and FAD/displacement labeling are where nameplate numbers were commercially filtered before stamping.

Insulation, IP, duty, frame

Insulation: Class B/F/H at 130/155/180°C limit. Most compressor motors ship Class F, Class B rise, 25°C margin. Room temperature has a steep effect on motor life because thermal aging is exponential per IEC 60085. Ducting the cooler exhaust out of the room is cheap and most compressor rooms do not have it.

IP55 standard. Covers external enclosure. Anti-condensation heaters solve internal condensation in humid environments for very little cost and are almost never installed at commissioning.

S1 for screw compressors, S3 for reciprocating with a duty percentage.

Frame size: NEMA and IEC do not cross-reference.

Fine print

Serial tracks warranty and parts. Model number encodes specs in a manufacturer-specific format. CE, UL, CSA, CCC, ATEX, IECEx as applicable. Year of manufacture on secondhand equipment: check serial against OEM records, plates get altered. Ambient range defines performance envelope. Altitude reduces air density and FAD. Weight for rigging and structural loading.
