Winterizing Your Air Compressor A Cold Weather Preparation Checklist

Oil is the whole article. Everything else fits in the margins.

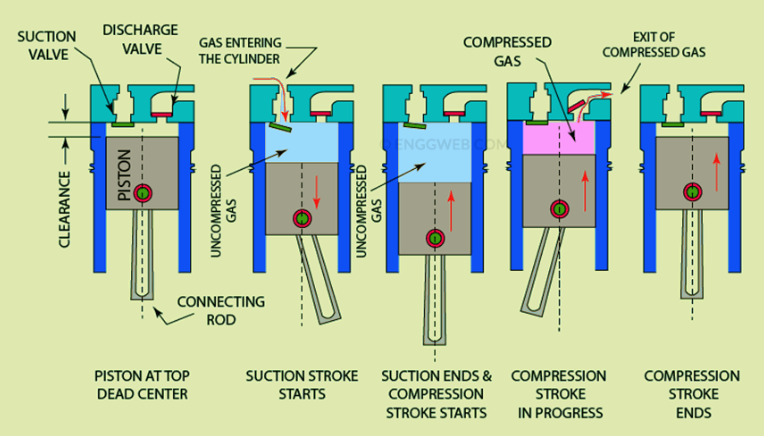

A compressor starting cold on mineral oil has no lubrication on the cylinder bore for the first several piston strokes. The splash system on a single-stage pump works by the connecting rod big end dipping into the sump and flinging oil upward. Cold mineral oil does not fling. It clings to the rod and drops back. The piston is already cycling. Ring lands are grinding on dry cast iron at the top of the stroke where contact pressure is highest. The crosshatch hone pattern machined into that bore at the factory, the specific surface finish that exists to hold a microscopic oil film against the ring face, gets polished a little flatter every time this happens.

By the second or third winter of cold mineral-oil starts, the top third of the bore is measurably smoother than the bottom two-thirds. Oil consumption goes up. Blow-by feeds hot gases into the crankcase. The compressor does not break. It just gets gradually, permanently worse. There is no non-destructive repair. The bore has to be re-honed on a machine, which means pulling the pump head, removing the cylinder, and taking it to a shop. Most people buy a new compressor instead.

PAO synthetic at ISO VG 68 changes this. Viscosity index around 130 versus 90 to 100 for mineral. The higher number means the oil's thickness changes less across a temperature range. At 10°F the PAO is still fluid enough for the splash system to move it. At 200°F operating temp it still holds a film. Mineral oil cannot cover both ends at the same grade. A mineral VG 100 that protects at running temperature is almost solid at 10°F. A mineral VG 68 that pours in the cold thins out too much at running temperature.

Pour point is the spec that matters. ISO VG is measured at 40°C. Pour point tells you where the oil actually stops flowing. The oil becomes useless for lubrication well above its pour point. Roughly 25 to 30 degrees above, maybe more, maybe less depending on the base stock and additive package. Standard mineral compressor oil has a pour point around minus 15°F to minus 20°F. Do the math on that and the practical lower limit for cold starts is somewhere around 10°F to 15°F ambient, and that assumes the oil is fresh and the sump is clean.

Drain old oil warm. Always. Run the machine ten minutes, then pull the plug immediately. Warm oil carries dissolved acids and metallic fines out of the crankcase. Cold oil leaves them smeared on every internal surface.

Diester synthetics are also good in cold weather, sometimes better than PAO on raw pour point numbers. They have a quirk that product data sheets do not emphasize. Diester molecules attract and hold trace water from humid crankcase air. During operation the oil runs hot enough to drive moisture off. During four months of winter storage it never gets warm and the water accumulates at concentrations too low to see on a sight glass. Whether this causes measurable bearing damage over one winter of storage or whether it takes several winters to matter is something that probably depends on the humidity level in the garage and the condition of the crankcase breather and a dozen other variables that nobody has published controlled data on, as far as can be determined from the available literature. The safe move for a machine sitting all winter is PAO over diester, and a spring oil change regardless of what the oil looks like.

Screw compressor owners have a worse version of this problem because the oil does three jobs and the thermostatic valve can stick with cold oil and send the airend into either overheating or cold-running condensation that emulsifies the entire oil charge. Sump heaters prevent it.

That is all that needs to be said about screw compressors here because the audience for this article mostly owns reciprocating machines.

The amount of attention given to oil above relative to every other topic below is deliberate and proportional to actual risk.

Condensate volume climbs in cold weather. Larger temperature differential between hot discharge air and cold tank wall, more water drops out per cycle. Standard guidance says drain the tank. Fine. What gets less coverage is the condensate chemistry. Dissolved CO2 makes it acidic, around pH 5. Cold water holds more dissolved oxygen. Corrosion rate on the tank interior increases in winter instead of decreasing, which most people would not guess. Pitting concentrates along the water line inside the tank and at heat-affected zones beside the welds. A borescope through the drain port on an older tank will show whether this has progressed. From outside, nothing is visible.

The brass drain valve in the steel bung is a galvanic cell sitting in acid. Leave it alone for a winter and it may seize hard enough to snap when someone tries to open it. Cycle it in the fall.

Leave the drain open during storage. Shim the frame if the drain bung is not at the true geometric low point of the tank.

For winter operation, drain at least twice per work session. Summer habits are wrong for winter condensation rates.

Timer auto drains are wrong too, for the same reason. Fixed interval, variable condensate load. Demand drains adapt. Worth the modest price difference.

The unloader valve and start capacitor fail together in a way that is worth understanding because the combination is what kills motors, not either one alone. The unloader vents head pressure when the motor stops. Frozen shut, it forces the motor to restart against line pressure. The rotor locks. Current spikes. Meanwhile the start capacitor has lost microfarads from the cold, the exact amount depending on the cap's construction and age and temperature in ways that manufacturers do not always document clearly. The motor needs extra torque because the oil is stiff. The cap provides less torque because it is cold. Add head pressure and the motor stalls.

Then the operator tries again. And again. Each attempt sends a locked-rotor surge through the cap. Several of these in a few minutes can permanently degrade or rupture the cap, and now there are two problems where there was one.

Listen for the unloader vent at cutout each fall. Measure the cap on a multimeter. A minute of checking prevents the cascade.

Refrigerated air dryers stop drying below their rated ambient minimum. The evaporator ices over, the unit looks normal, wet air passes through. No alarm. If the dryer is in an unheated space that goes below spec, it either needs to move or get swapped for a desiccant type. Whether a desiccant dryer is worth the cost and the 15% to 18% airflow loss for regeneration depends on what the air is being used for. Spray painting needs dry air. Blowing off parts does not.

Fog the cylinder bore before winter storage. Marine fogging oil, two seconds into the intake, a few hand turns of the flywheel. This prevents the bore rust that causes the hone pattern damage described at the top of this article. The rest of storage is obvious. Depressurize, drain open, canvas cover not sealed plastic, seal openings against mice, unplug from wall.

For winter operation: three to five minutes unloaded before pulling demand. The aluminum piston contracts faster than the cast iron bore as temperature drops, so clearance at 15°F is wider than at operating temp. Blow-by and piston slap until things warm up.

Regulator icing from Joule-Thomson cooling at the valve seat means moisture is present upstream. Fix the moisture source.

A thermostatically controlled heater set to 35°F in a closed compressor room solves most of the above simultaneously. Whether that is practical depends on the space, the electrical situation, and whether running an electric heater unattended in a particular garage is a fire concern. In some shops it is. In others it is the obvious answer.

Spring: check oil before starting. Milky means contaminated, drain and flush before running even briefly. Build to 40 PSI, stop, watch gauge fifteen minutes. Any pressure drop means winter damage somewhere. New intake filter regardless of appearance.
